Stationary Batching Plants

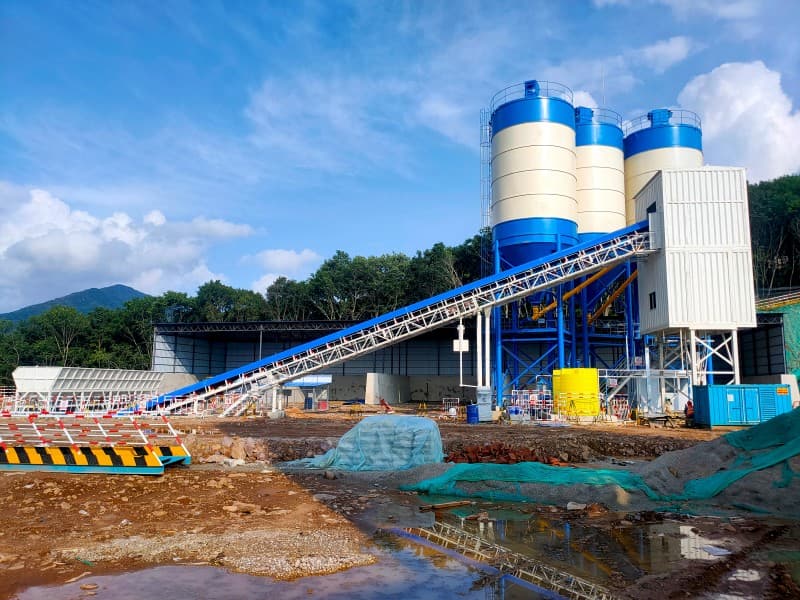

HZS120
High-output plant, fast-install and galvanized options
The HZS120 is available in standard, fast-install foundation-free, and fully galvanized export configurations — all delivered by TIANYU in recent projects. A JS2000 mixer based on TIANYU's award-winning twin-shaft design anchors the line.
Technical Data
Specifications
| Parameter | Value |
|---|---|
| Production Capacity | 120m³/h |
| Mixer | JS2000 twin-shaft |
| Mixer Discharge | 2.0m³/batch |
| Aggregate Batcher | PLD3200 · 4 bins |
| Max Aggregate Size | 80mm |
| Discharge Height | 4.2m |
| Total Installed Power | ≈180kW |
Specifications are indicative for this model line and confirmed per order configuration. Contact us for a project-specific data sheet.
Engineering
Key features
- JS2000 mixer — Shandong SME Science & Technology Progress First Prize design
- Fast-install foundation-free version cuts civil works and setup time
- Fully galvanized version for coastal and high-humidity climates
- Containerised export shipping proven on recent deliveries
Typical applications
- Commercial ready-mix plants
- Infrastructure and energy projects
- Export projects requiring corrosion protection
